Detalles del producto
Lugar de origen: PORCELANA
Nombre de la marca: JUNPU
Certificación: ROHS, CE, CCC
Número de modelo: JP-P23W
Pago y términos de envío
Cantidad de orden mínima: 1 pieza
Precio: Negociable
Detalles de empaquetado: Caja fuerte estándar del cartón
Tiempo de entrega: 1 ~ 10 días laborables
Condiciones de pago: T/T, Western Union, tarjeta de crédito vía Alibaba
Capacidad de la fuente: 10000 piezas por mes
Nombre del producto: |
Nodo de fibra óptica XGS PON WDM FTTH |
Solicitud: |
10G, XGSPON |
Recepción de poder: |
-1 ~ -20dbm (digital) |
Puertos de salida: |
1 o 2 salidas |
Nivel de salida: |
82dbuv |
Con el Wdm: |
Sí |
Longitud de onda de trabajo: |
1550/1490/1310 nm/1277 nm |
Fuente de alimentación: |
DC5V |
OEM: |
Sí |
Ancho de banda: |
45-862MHz/1000MHz |
Nombre del producto: |
Nodo de fibra óptica XGS PON WDM FTTH |
Solicitud: |
10G, XGSPON |
Recepción de poder: |
-1 ~ -20dbm (digital) |
Puertos de salida: |
1 o 2 salidas |
Nivel de salida: |
82dbuv |
Con el Wdm: |
Sí |
Longitud de onda de trabajo: |
1550/1490/1310 nm/1277 nm |
Fuente de alimentación: |
DC5V |
OEM: |
Sí |
Ancho de banda: |
45-862MHz/1000MHz |

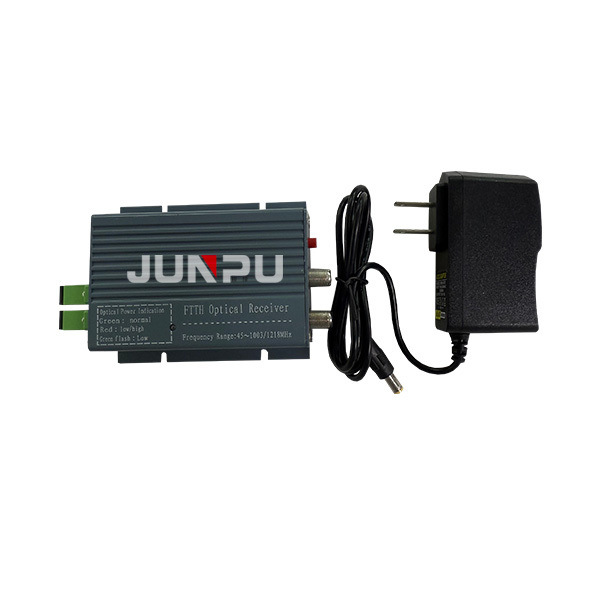

XGS PON WDM FTTH Fiber Optic Node with Power Supply
Description:
Aluminum casing with good heat dispersion.
*Adopts GaAs module as RF amplifying module,the optical receiving range for digital signal can reach.
*AGC control range -3~-12dbm,output level keeps unchanged.
*Low consumption design and total consumption less than 3w,high reliable switching power supply.
*Supply with optical inspection circuit.
*SC/APC or FC/APC optical connector.
*Realize the 8V input port feeding way of power supply.
Technical Specification:
|
Item |
Description | Value | Unit | Conditions / Notes |
| Optical Specifications (Forward Path) | ||||
| 1 | Wavelength | 1550/1490/1310 | nm | Com port |
| 1490/1310 | nm | For ONT | ||
|
2
3 |
Optical Power Input Range | -18～+2 | dBm | |
| AGC Range | -2～-12 | dBm | ||
| 4 | Optical Input Return Loss | ≥45 | dB | |
| RF Specifications (Forward Path) | ||||
| 4 | Bandwidth | 47～1003 | MHz | |
| 5 | Flatness | ±1.0 | dB | 47～1003MHz,At 25 ℃ |
| 6 | Slope | 0~2.0 | dB | 47～1003MHz,At 25 ℃ |
| 7 | Temperature Stability | ±1.5 | dB | In the operating temperature range (-25 ~ +65 ℃) |
| 8 | Output Level | 75±2 | dBuV | -15dBm input optical power, The analog channel,per channel modulation 4.0%, in the 860MHz point test, at 25℃ |
| 9 | Impedance | 75 | Ohm | |
| 10 | Return Loss(47～1000MHz) | ≥12 | dB | At 25 ℃ |
| 11 | MER | ≥30 | dB | -15~-5dBm input optical power |
| ≥24 | dB | -20~-16, input optical power | ||
| 12 | Power | < 1.0 | W | |
| Environmental Parameters | ||||
| 13 | Operating Temperature | -25～65 | ℃ | |
| 14 | Storage Temperature | -40～70 | ℃ | |
| 15 | Storage Humidity | ≤95 | ％ | Non- condensation |
| User Interface | ||||
| 16 | Optical Connector Type |
SC/APC in, SC/PC out |
SC Optional, See the figure4 and5 |
|
| 17 | Power supply | DC5V/0.5A | External adapter, See the figure3 | |
| 18 | RF Output | RG6 Connector |
Optional, See the figure1 and2 |
|
| 1 or 2 ports | ||||
| 19 | Optical Indicator |
Shine Red or Green color |
Optical power <-16dBm ,red Optical power >--16dBm ,green See the figure6 |
|
| 20 | Housing | 90×85×25 | mm | |
| 21 | Weight | 0.15 | kg | |
